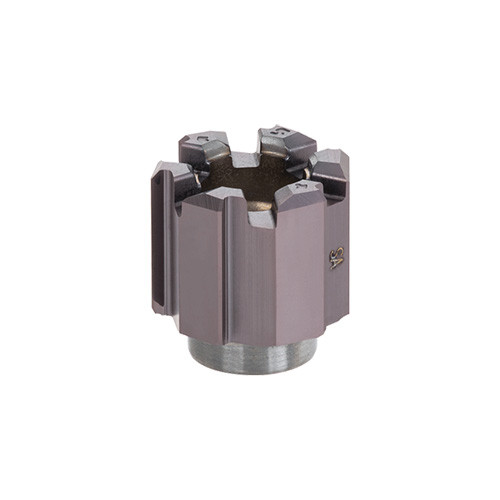

HRM-30.000-AS-T9 AH725
Reaming heads with straight flute for blind holes (H7 hole tolerance). Reaming head with DC 11.5 mm or more can also be used for through holes.
Spécifications des produits

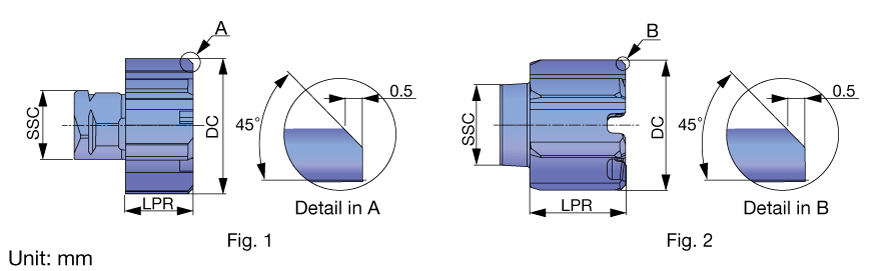

| Longueur dépassement (LPR) | 12.8 mm | Nuance | AH725 |
| Code taille logement plaquette (SSC) | T9 | Revêtement | TiAlN |
| Matière du corps | Carbide | Matière de l'arête de coupe | Carbide |
| Type de mesure | Metric | Application | | Alésoirs | |
| Diamètre coupant (DC) | 30 mm | Matière possible | | Aciers | Aciers Inoxydables | Fontes | Matériaux durs | Matières non ferreuses | Alliages réfractaires | |
| Nombre de dents (NOF) | 8 | Unité | M |
Caractéristiques du produit
| DescFamille | Reaming heads with straight flute for blind holes (H7 hole tolerance). Reaming head with DC 11.5 mm or more can also be used for through holes. | COO | SOUTH KOREA |
| Remarques | DC: 10.000, DC tolerance: +0.012 / +0.008, Hole diameter tolerance (H7): +0.015 / 0 DC: 11.000 18.000, DC tolerance: +0.015 / +0.011, Hole diameter tolerance (H7): +0.018 / 0 DC: 18.001 30.000, DC tolerance: +0.017 / +0.013, Hole diameter tolerance (H7): +0.021 / 0 DC: 31.001 32.000, DC tolerance: +0.021 / +0.016, Hole diameter tolerance (H7): +0.025 / 0 |
Informations de livraison
Poids du conditionnement
0.0000
